20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified

  • 20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified
  • 20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified
  • 20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified
  • 20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified
  • 20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified
  • 20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified
Menşe yeri Guangzhou, Çin
Marka adı BERGMAN, BERGMAN
Model numarası FGL-20
Min sipariş miktarı 1
Fiyat $70-100

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Boyut 20 mm Yüz malzeme Tungsten Carbide TC
Koltuk malzemesi Tungsten Carbide TC Elastomer Malzeme VİTON FPM
Metal parçaları SS316 Hastelloy C AM350 Maksimum basınç ≤ 1.5mpa
Maksimum sıcaklık -20 ° C-180 ° C Maksimum Hat Hızı ≤ 15m/s
Model Fgl-fs HTS Kodu 8484.20.00
Uyumlu modeller 2610, 2620, 2630, 2640, 3085 İkincil mühür VİTON FPM
Standartlara Uygunluk DIN24960, ISO3069, EN12576, API682 Set başına miktar 1set
Malzeme Seçenekleri Tungsten karbür, silikon karbür, karbon grafit, alümina
Vurgulamak

Replace Flygt 2610 2620 2630 2640 3085 Mechanical Seal

,

ISO9001-2015 Certified Flygt Pump Seal

,

TC Face Plug-in Mixer Pump Seal
Mesaj bırakın
Ürün Açıklaması
FS-20mm Replace Flygt 2610 2620 2630 2640 3085 Plug-in Mixer Pump Mechanical Seal
Product Specifications
Name Mechanical Seal Size Standard size 20mm
Brand BERGMAN Model FGL-FS
Pressure ≤ 1.5mpa Line Speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models

2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360.

Product Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Direct replacement for original seals with cost-effective options
  • 2000+ square meter warehouse with large inventory for fast delivery
  • Can replace Burgman, John Crane, AES and other renowned brand seals
  • OEM and customized services available
  • Factory-direct pricing with superior quality and after-sales service
Material Advantages

Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings.

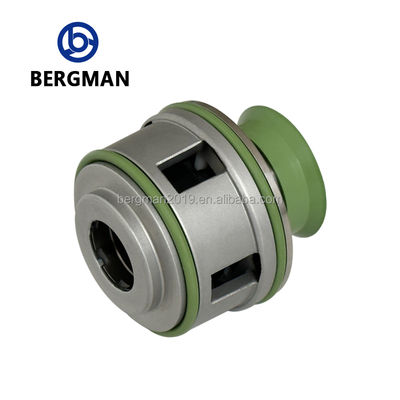

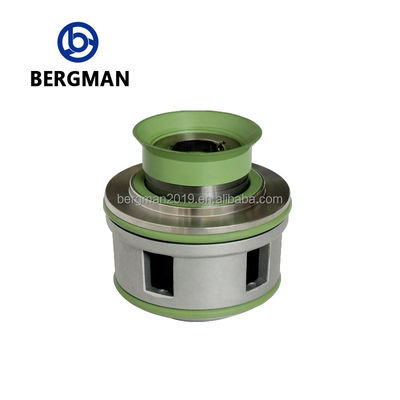

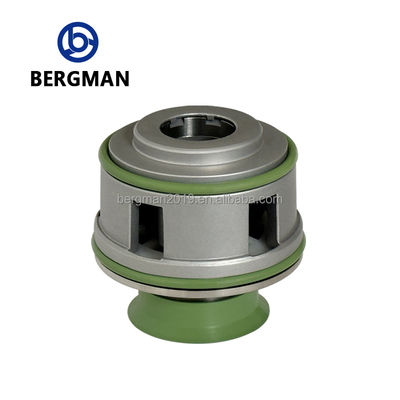

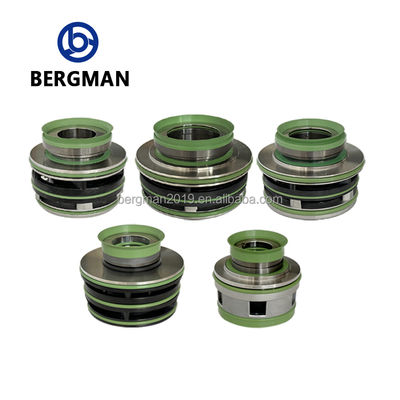

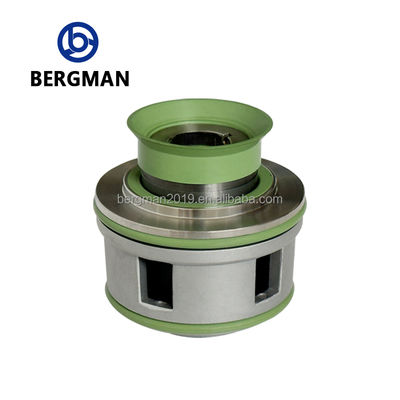

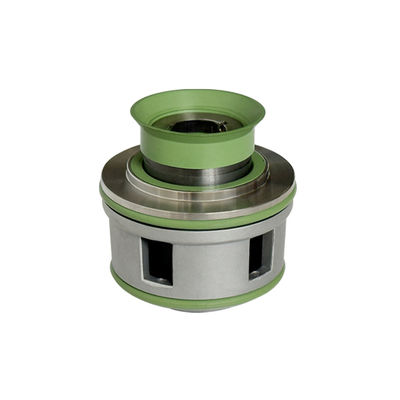

Product Images
20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified 0 20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified 1
Company Profile

Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. With over 20 years of development, we have grown into a specialized manufacturer with ISO9001:2015 certification. Our product range includes various mechanical seals for pumps, fluid systems, and industrial applications, using premium materials like cemented carbide, silicon carbide, and carbon graphite.

Located in Guangzhou with convenient access to major ports, we maintain a 2000+ square meter warehouse for efficient logistics and quick delivery.

20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified 2
Production Capabilities
  • Modern advanced machine tool equipment
  • Dust-free workshop environment
  • Comprehensive inspection equipment
  • Assembly line production
20mm Flygt Pump Mechanical Seal with TC Face for Replace Flygt 2610 2620 2630 2640 3085 ISO9001-2015 Certified 3
Application Range

Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.

Frequently Asked Questions
Q: Are you a factory or a trader?

A: We are a production factory with our own international trade department.

Q: Where is your factory located?

A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.

Q: How many days is your delivery time?

A: Stock items ship immediately after payment. Custom items require 10-25 days production time.

Q: Do you provide free samples?

A: Samples are not free, but sample costs can be refunded with order.

Contact Information

International Trade Contacts:

Li Wei: Mobile +86-15622176299

Yang Yingjie: WeChat/WhatsApp +86-15627223988

Yang Aijun: WeChat/WhatsApp +86-13602719849

Email: bergman168@outlook.com
