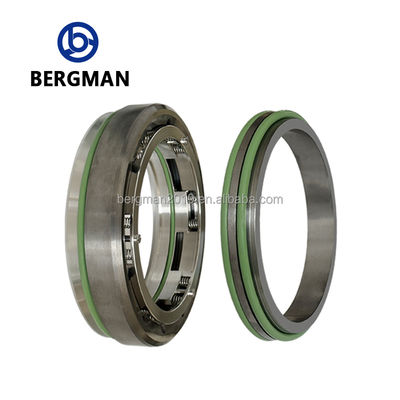

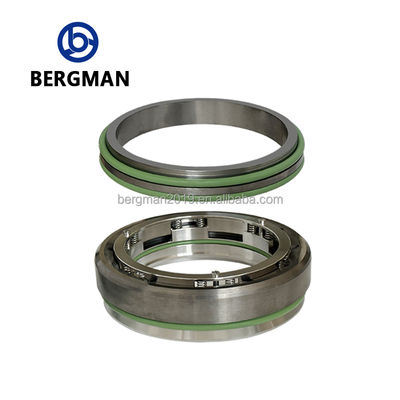

105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance

  • 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance
  • 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance
  • 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance
  • 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance
  • 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance
  • 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance
Menşe yeri Guangzhou, Çin
Marka adı BERGMAN, BERGMAN
Model numarası FWL-105mm
Min sipariş miktarı 1
Fiyat $500-800

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Boyut 105mm Yüz malzeme Tungsten Carbide TC
Koltuk malzemesi Tungsten Carbide TC Elastomer Malzeme VİTON FPM
Metal parçaları SS316 Hastelloy C AM350 Maksimum basınç ≤ 1.5mpa
Maksimum Hat Hızı ≤ 15m/s Sıcaklık aralığı -20 ° C-180 ° C
Model FS-W-L105mm HTS Kodu 8484.20.00
İkincil mühür VİTON FPM Uyumlu modeller Flygt Pompa Modelleri 1335.181, 2024, 2056, vb.
Standartlara Uygunluk DIN24960, ISO3069, EN12576, API682 Malzeme Seçenekleri Tungsten karbür, silikon karbür, karbon grafit, alümina
O-ring malzemesi Malzeme seçimine bağlı
Vurgulamak

105mm Flygt Pump Mechanical Seal

,

ISO9001-2015 Certified Mechanical Seal

,

DIN24960 Standard Flygt Pump Seal
Mesaj bırakın
Ürün Açıklaması
Replace Flygt FWL-105mm 7101.8X5 7081.8X5 7121.8X5 Pump Mechanical Seal Lower Seal
Product Specifications
Name Mechanical Seal Size Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 75mm, 80mm, 90mm)
Country of Origin Guangzhou, China Brand BERGMAN
Model FS-W-L105mm MOQ 1 set
Pressure ≤ 1.5MPa Line Speed ≤ 15m/s
Temperature -20°C to 180°C (depends on O-ring material) Application Flygt pump
Face Material Tungsten Carbide (TC) Seat Material Tungsten Carbide (TC)
Secondary Seal VITON FPM Metal Parts SS316, Hastelloy C, AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models
1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530, and full range of Flygt pump mechanical seals.
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective options
  • 2,000+ square meters warehouse with large inventory for fast delivery
  • Can replace Burgman, John Crane, AES and other world-renowned brand seals
  • Supports OEM and customized services
  • Factory direct pricing with high quality and fast delivery
  • Complete range of Flygt pump mechanical seals
Material Options
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings, etc.
105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 0 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 1 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 2
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, Guangzhou Bogman Mechanical Seals Co., Ltd. was established in 2019, and Guangdong Bogman Seals Co., Ltd. was established in 2023. The company has passed ISO9001:2015 certification.
We specialize in pump mechanical seals, axial mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals, stainless steel oil seals, skeleton oil seals, hydraulic oil seals, automotive water seals and various mechanical sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to Guangzhou Port, Shenzhen Port, and Foshan Port for efficient logistics. We maintain a 2,000+ square meter warehouse for fast delivery.
105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 3
Exhibition and Warehouse
Over 1,000 product varieties in exhibition halls and 2,000+ square meters of spot warehouse. Video warehouse tours available.
105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 4
Production Workshop
Modern advanced machine tool equipment, dust-free workshop, inspection equipment, and assembly line operation.
105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 5 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 6
Exhibition Participation
Annual participant in Guangzhou Spring Import and Export Fair with accumulated global customers.
105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 7
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 8
Packaging and Shipping
Various packaging options available with customized packaging for large orders.
105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 9 105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 10
Customer Evaluation
Recognized for factory pricing, excellent quality, and faster delivery times.
105mm Flygt Pump Mechanical Seal Lower Seal with ISO9001-2015 Certification and DIN24960 Standard Compliance 11
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port. Other ports can be selected based on customer needs.
Q: How many days is your delivery time?
A: For stock products, we ship immediately after payment. For other items, production takes 10-25 days depending on order quantity and type.
Q: Do you provide free samples?
A: We typically don't provide free samples, but sample costs can be refunded after order placement.
Q: What shipping methods do you use?
A: We typically ship by air, sea, or express due to the small size and weight of mechanical seals.
Q: What are your payment terms?
A: For stock: 100% prepayment. For custom orders: 30% deposit, 70% before shipment. We accept T/T, PayPal, Western Union, and Alibaba payments.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
