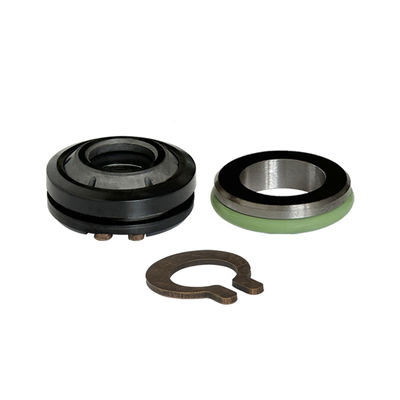

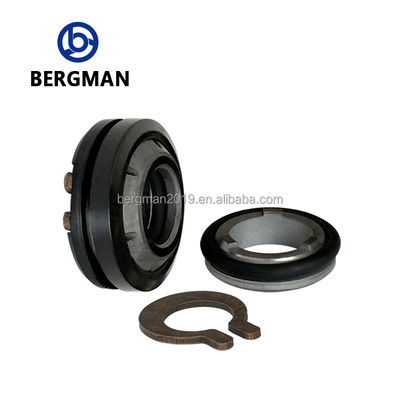

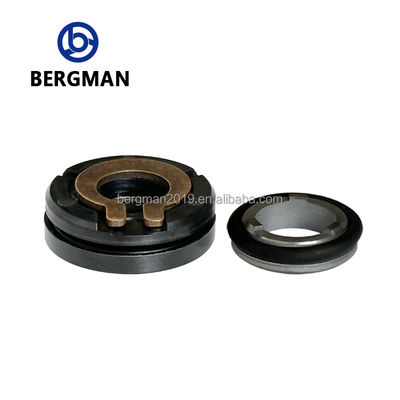

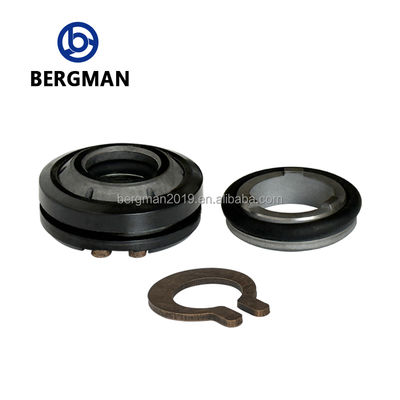

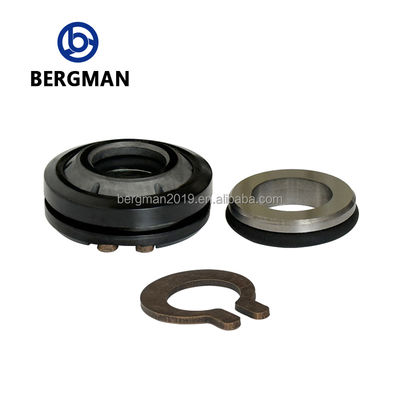

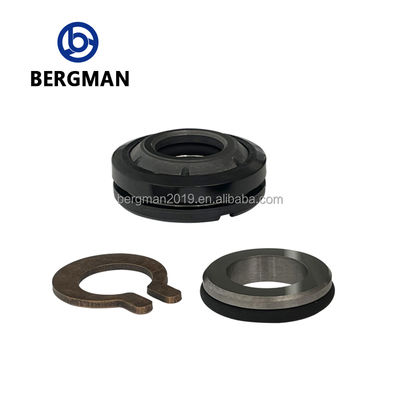

Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat

  • Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat
  • Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat
  • Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat
  • Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat
  • Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat
  • Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat
Menşe yeri Guangzhou, Çin
Marka adı BERGMAN, BERGMAN
Model numarası FGU-20mm
Min sipariş miktarı 1
Fiyat $30-60

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Boyut 20 mm Yüz malzeme Tungsten Carbide TC
Koltuk malzemesi Tungsten Carbide TC Elastomer Malzeme VİTON FPM
Metal parçaları SS316 Hastelloy C AM350 Maksimum basınç ≤ 1.5mpa
Maksimum Hat Hızı ≤ 15m/s Sıcaklık aralığı -20 ° C-180 ° C
Model FS-G-U20mm HTS Kodu 8484.20.00
İkincil mühür VİTON FPM Uyumlu modeller Flygt 3045, 3050, 3060, 3085, 3069
Malzeme Seçenekleri Tungsten karbür, silikon karbür, karbon grafit, alümina O-ring malzemesi Uygulamaya bağlı
Mühür tipi Mekanik üst conta
Vurgulamak

Replace Flygt FGU-20mm Upper Seal

,

20mm Flygt Pump Mechanical Seal

,

Flygt Pump Models Upper Seal
Mesaj bırakın
Ürün Açıklaması
Replace Flygt FGU-20mm 3045 3050 3060 3085 3069 Pump Mechanical Seal Upper Seal
Product Specifications
Name Mechanical Seal
Size Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 75mm, 80mm, 90mm)
Brand BERGMAN
Model FS-G-U20mm
Pressure ≤ 1.5mpa
Temperature -20°C-180°C (Depends on O-ring material)
Face Material Tungsten carbide TC
Seat Material Tungsten carbide TC
Secondary Seal VITON FPM
Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015
Service OEM customization service
Compatible Flygt Pump Models
1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530
Product Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective alternatives
  • 2,000+ square meters warehouse with large inventory for fast delivery
  • Can replace Burgman, John Crane, AES and other world-renowned brands
  • Supports OEM and customized services
  • Factory-direct pricing with high quality and fast delivery
  • Full range of mechanical seals for Flygt pumps
Material Advantages
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings, etc.
Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat 0 Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat 1
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification. We specialize in mechanical seals for various applications including pumps, axes, fluids, and more. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for efficient logistics and quick delivery.
Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat 2
Production Capabilities
  • 2,000+ square meter exhibition hall with over 1,000 product varieties
  • Modern advanced machine tool equipment
  • Dust-free workshop with inspection equipment
  • Assembly line operation
  • Regular participation in Guangzhou Spring Import and Export Fair
Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat 3 Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat 4
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation industries.
Packaging & Shipping
Various packaging options available with customized packaging for large orders. Small size and weight make air, sea, and express shipping ideal.
Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat 5
FAQ
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.
Q: Do you provide free samples?
A: Samples are not free, but sample cost can be refunded after order placement.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
Contact Us
International Trade:
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
